Supercharger Cooling - V6 S/C 3.0L Petrol (G2006259): Operation

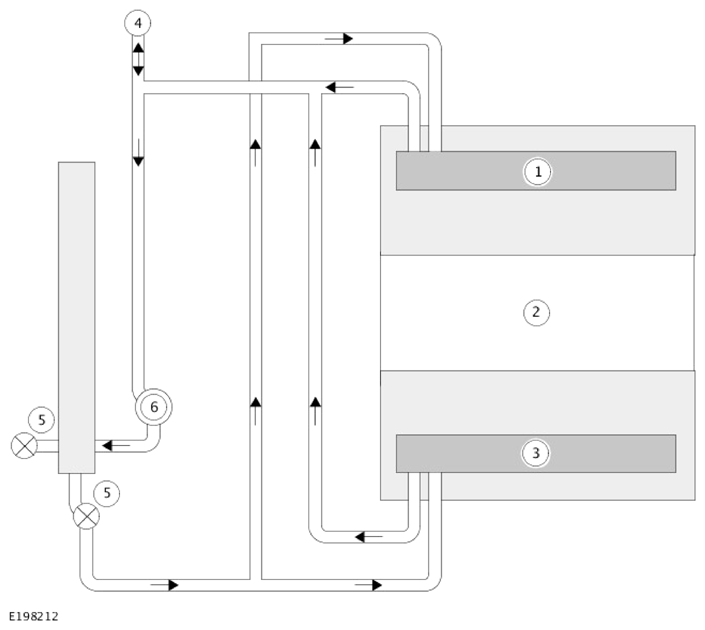

Supercharger Cooling - Flow Diagram
| ITEM | DESCRIPTION |
|---|---|
| 1 | Right charge air cooler |
| 2 | Engine |
| 3 | Left charge air cooler |
| 4 | Expansion hose connection (with engine cooling system) |
| 5 | Bleed screw |
| 6 | Charge air coolant pump |
Electrical power for the charge air coolant pump is supplied from the charge air coolant pump relay in the Engine Junction Box 1 (EJB 1). The charge air coolant pump relay is energized continuously in power mode 6 (ignition on). The Powertrain Control Module (PCM) operates the charge air coolant pump width Pulse Width Modulation (PWM) signals. Intensity of the charge air coolant pump operation depends on the charge air temperature sensor signals.
When the charge air coolant pump is running, warm coolant flows from the charge air coolers through the charge air coolant pump inlet connection to the charge air radiator. Then the engine coolant loses heat in the charge air radiator and returns to the charge air coolers.
