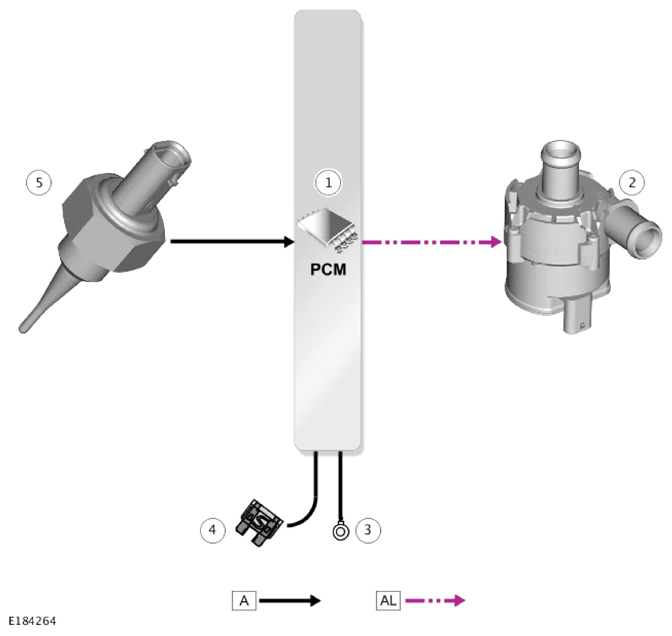

Control Diagram
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED: AL = PULSE WIDTH MODULATION (PWM).
| ITEM |
DESCRIPTION |
| 1 |
Powertrain Control Module (PCM) |
| 2 |
Charge air coolant pump |
| 3 |
Ground |
| 4 |
Power supply |
| 5 |
Charge air temperature sensor |
