Rear Silencer (G1913691): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

- This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for left side components, right side components are the same.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

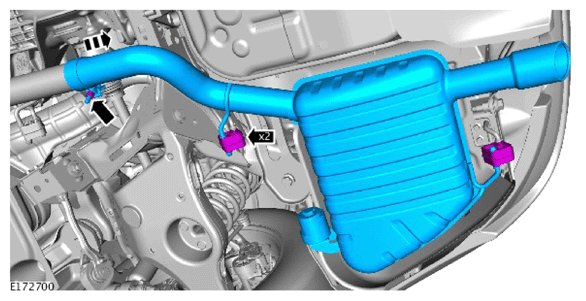

- Remove the 2 exhaust bracket hangers.
- Release the exhaust clamp nut and remove the rear silencer assembly from the vehicle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

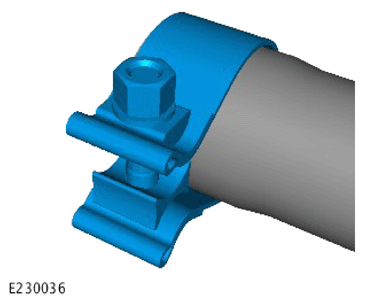

- Remove and discard the rear exhaust clamp.
- The rear exhaust clamp is spot welded into position and will require removal with the use of a grinder or a drill.
NOTE:
- Do not disassemble further if the component is removed for access only.
- If equipped.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

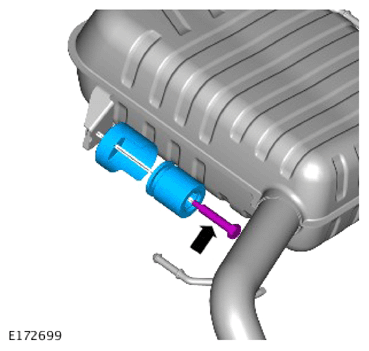

Remove the damper from the rear silencer assembly.
