Rear Silencer (G1913691): Installation

WARNING: This page is about a different variant/trim than selected.

NOTE:
- If equipped.
- This step is only required if previously removed.
Install the damper onto the rear silencer assembly.

Torque : 22 Nm
Install a new rear exhaust clamp to the rear silencer.
Renew Part: Rear exhaust silencer clamp Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the rear silencer and secure and tighten the exhaust clamp finger tight.
- Install the 2 exhaust bracket hangers.

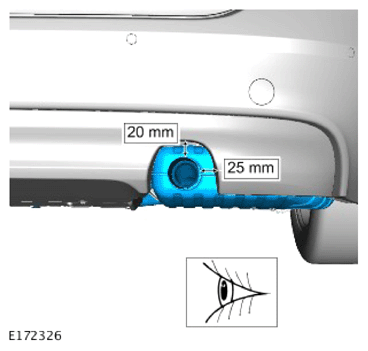

- Position the rear silencer in the correct position as illustrated and fully tighten the exhaust clamp.
  Torque : 55 Nm
