Exhaust Gas RECIRCULATION Valve Outlet Tube (G1899450): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustration showing certain components removed to provide extra clarity.

Remove the engine cover.
Refer to: ENGINE COVER - TDV6 3.0L DIESEL

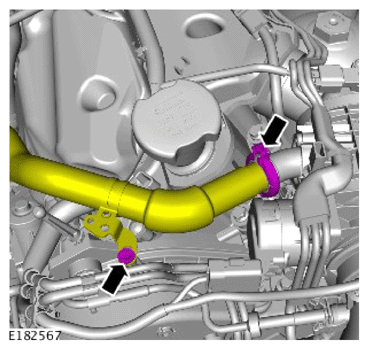

NOTE: Discard the tube clamp.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

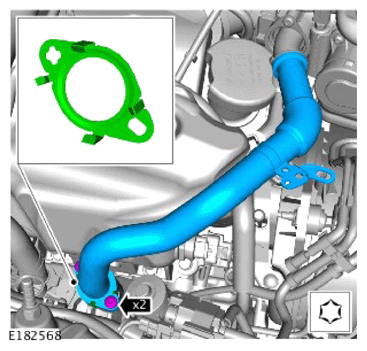

Disconnect the Exhaust Gas Recirculation (EGR) valve outlet tube.

Torque : 5 Nm
NOTE: Discard the gasket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the EGR valve outlet tube.
