Diesel Exhaust Fluid Pipe (G1913348): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Make sure that all openings are sealed.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.
Removal steps in this procedure may contain installation details.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: DIESEL EXHAUST FLUID TANK DRAIN AND REFILL

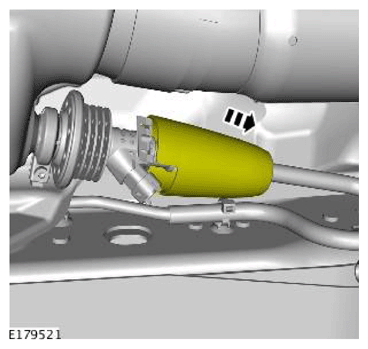

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

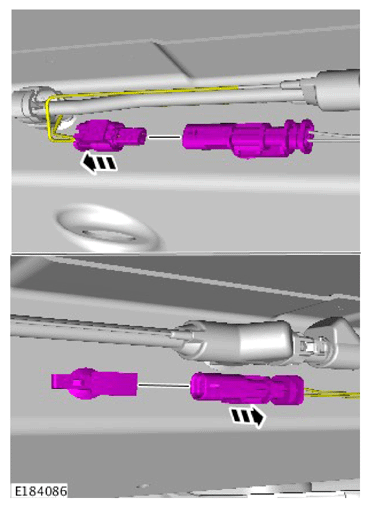

WARNING: Be prepared to collect escaping fluid.

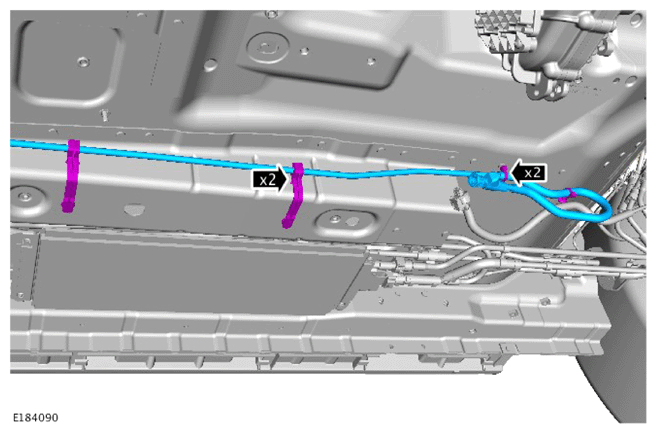

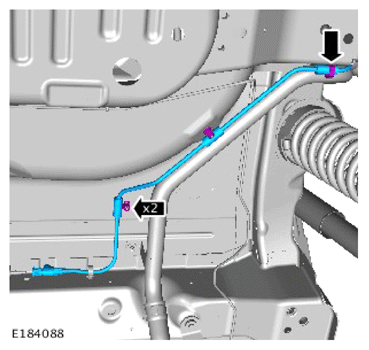

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

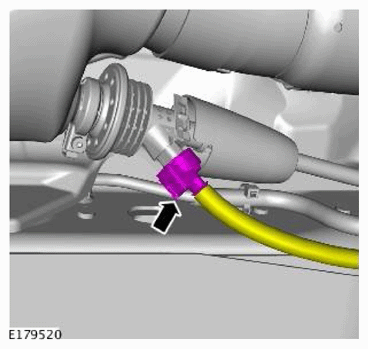

WARNING: Be prepared to collect escaping fluid.

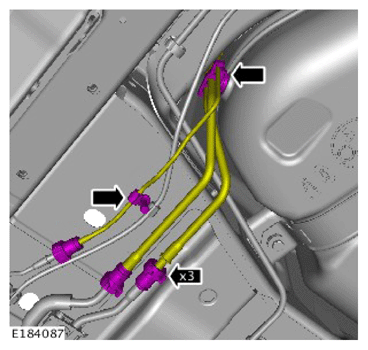

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

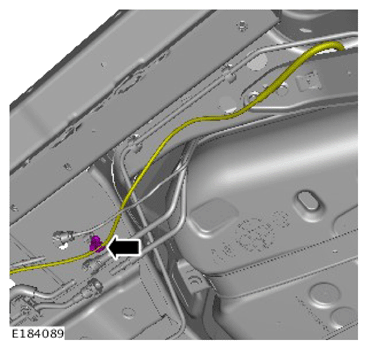

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

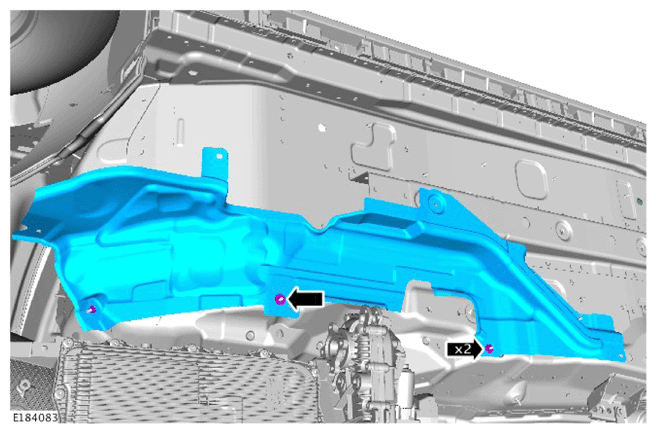

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

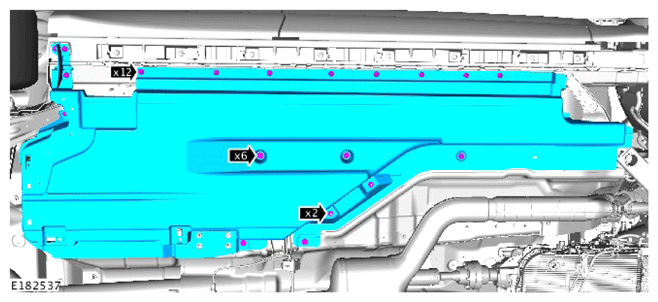

Torque : 7 Nm

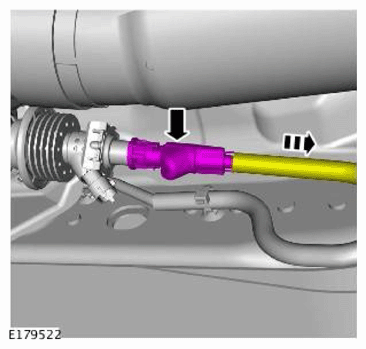

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

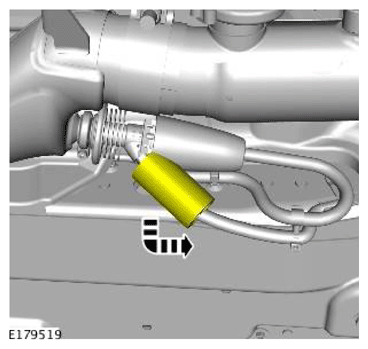

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

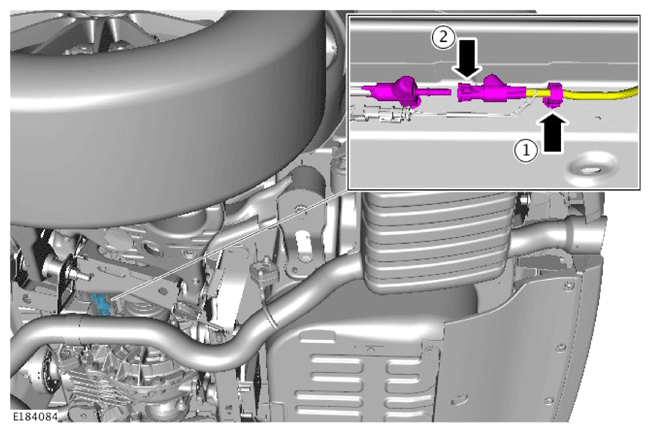

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

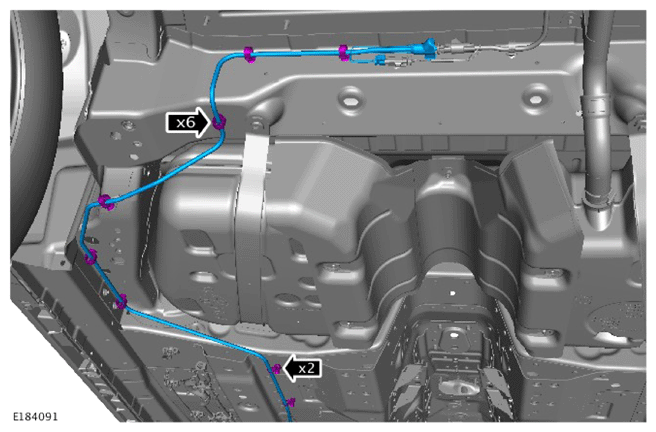

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
WARNING: Be prepared to collect escaping fluid.
CAUTION:
- Make sure that the area around the component is clean and free of foreign material.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

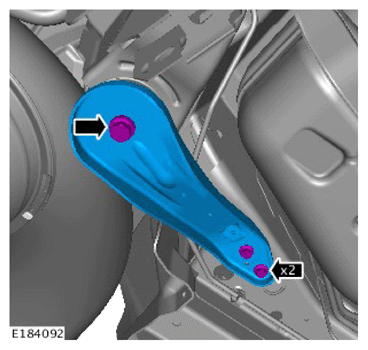

WARNING: Make sure the axle assembly is supported.

NOTE: Discard the M14 bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Rear subframe to body bolts Quantity: 1 .

Torque

M14: 170 Nm

M10: 60 Nm
WARNING: Be prepared to collect escaping fluid.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
