Diesel Exhaust Fluid Injector (G2019369): Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new gasket to the DEF injector.
  Renew Part: Diesel exhaust fluid injector refit kit Quantity: 1 .

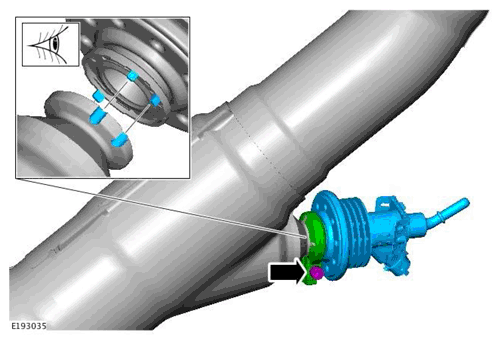

- Install the DEF injector.
- Install and tighten the clamp.
  Torque : 5 Nm
- Connect the DEF injector electrical connector.
- Connect the DEF injector supply pipe.
- Reposition the DEF injector supply pipe heatshield.
- Reposition the DEF injector electrical connector heatshield.
NOTE: SRO to be claimed separately.
- Connect the Jaguar Land Rover (JLR) approved diagnostic equipment.
  General Equipment: Jaguar Land Rover approved diagnostic equipment
- Select 'Powertrain - Diesel Exhaust Fluid Prime and Pressure Test' from the diagnostic menu.
- Make sure that all steps from the on-screen instructions are followed.
