Diesel Exhaust Fluid Filler Assembly (G1880274): Removal
WARNING: This page is about a different variant/trim than selected.
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Refer to: DIESEL EXHAUST FLUID TANK DRAIN AND REFILL
- Refer to: LOADSPACE SIDE TRIM PANEL
-
NOTE: Do not disassemble further if removed for access only.

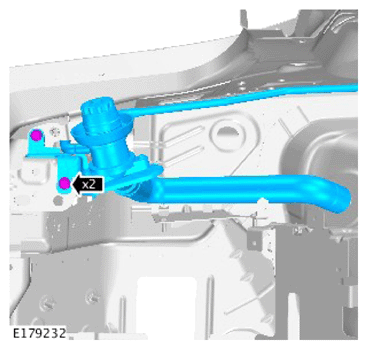

Torque : 7 Nm

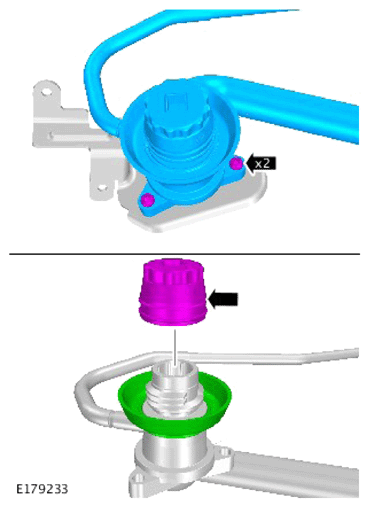

Torque : 6 Nm
