Crankcase Vent Oil Separator (G1879927): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustration showing certain components removed to provide extra clarity.

Remove the engine cover.
Refer to: ENGINE COVER - TDV6 3.0L DIESEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

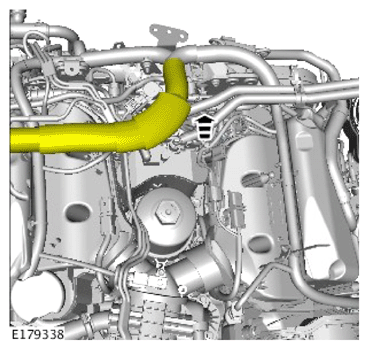

Reposition the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

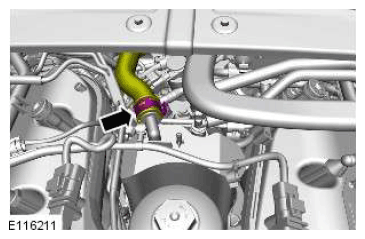

Disconnect the breather hose.
CAUTION:
- Discard the seals.
- Make sure that all openings are sealed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

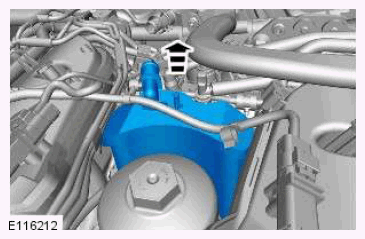

Remove the crankcase vent oil separator.
