Diesel Exhaust Fluid Tank Drain And Refill (G2019368): Filling

WARNING: This page is about a different variant/trim than selected.
  1. Using Land Rover approved diagnostic equipment, follow the on-screen instructions and check the diesel exhaust fluid level.

    General Equipment: Land Rover diagnostic equipment

  2. CAUTION: Failure to carry out this instruction may cause damage to the vehicle.
    G11698649Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Check the quality of the diesel exhaust fluid within the diesel exhaust fluid dispensing kit using a hydrometer.

    General Equipment: Diesel Exhaust Fluid (DEF) quality hydrometer

  3. WARNING: Failure to carry out this instruction may result in personal injury.
    G11698650Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Make sure the operating levers of the diesel exhaust fluid dispensing kit are in the positions indicated.

    General Equipment: Diesel Exhaust Fluid Dispensing Kit

  4. CAUTION: Make sure that the diesel exhaust fluid dispensing kit flow meter is reset.
    G11698651Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  5. CAUTION: Make sure that the upper tank is not overfilled. Observe at all times.
    G11698652Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Fill the upper tank to the correct amount of diesel exhaust fluid previously specified by Land Rover approved diagnostic equipment.

    General Equipment: Diesel Exhaust Fluid Dispensing Kit

  6. CAUTION:
    • Failure to carry out this instruction may cause damage to the vehicle.
    • If any diesel exhaust fluid is visible in the clear filler pipe, this must be drained and discarded before proceeding to the next step.
    G11698653Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Make sure that the inner rubber feed hose is in the position shown.

    General Equipment: Diesel Exhaust Fluid Dispensing Kit

  7. CAUTION:
    • Make sure the diesel exhaust fluid dispensing kit is correctly installed on to the diesel exhaust fluid filler assembly.
    • Make sure that the vehicle paintwork is protected.
    G14288569Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the diesel exhaust fluid dispensing kit on to the diesel exhaust fluid filler assembly.

    General Equipment: Diesel Exhaust Fluid Dispensing Kit

  8. CAUTION: Do not overfill the vehicle.
    NOTE: Fluid may be visible in the outer hose.
    G11698656Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Position the diesel exhaust fluid dispensing kit upper  operating lever in the position indicated. The diesel exhaust fluid tank top-up procedure will now commence. Immediately proceed to the next step.

    General Equipment: Diesel Exhaust Fluid Dispensing Kit

  9. CAUTION: Do not overfill the vehicle.

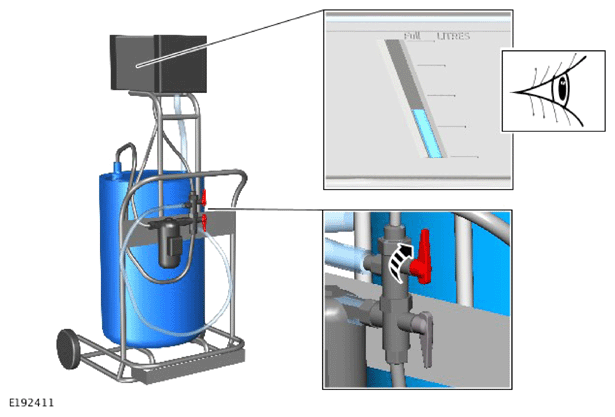

    G14288747Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Fill the vehicle with the correct amount of diesel exhaust fluid specified by Land Rover approved diagnostic equipment.
    • When the correct amount has been drained, position the diesel exhaust fluid dispensing kit upper  operating lever in the position indicated.

      General Equipment: Diesel Exhaust Fluid Dispensing Kit

  10. G11698658Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Position the diesel exhaust fluid dispensing kit lower  operating lever in the position indicated.
    2. Operate the pump on the diesel exhaust fluid dispensing kit to recover any diesel exhaust fluid remaining in the clear filler pipe. The diesel exhaust fluid is recovered through the inner pipe at the vehicle filler assembly. The pipe may need to be raised to assist recovery.

      General Equipment: Diesel Exhaust Fluid Dispensing Kit

  11. NOTE: Make sure the pump on the diesel exhaust fluid dispensing kit is switched off before this step is carried out.
    G11698659Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Position the diesel exhaust fluid dispensing kit lower operating lever in the position indicated.

    General Equipment: Diesel Exhaust Fluid Dispensing Kit

  12. Using Land Rover approved diagnostic equipment, follow the on-screen instructions and check the diesel exhaust fluid level.

    General Equipment: Land Rover diagnostic equipment

  13. CAUTION:
    • If any fluid remains in the clear filler pipe after the diesel exhaust dispensing kit is disconnected from the vehicle, this must be drained and discarded before the equipment can be used again.
    • Make sure that the vehicle paintwork is protected.
    G14288569Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the diesel exhaust fluid dispensing kit from the diesel exhaust fluid filler assembly.

    General Equipment: Diesel Exhaust Fluid Dispensing Kit

  14. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    G14288568Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the diesel exhaust fluid filler cap until it clicks 3 times.
