Diesel Exhaust Fluid Tank Drain And Refill (G2019368): Draining

WARNING: This page is about a different variant/trim than selected.

CAUTION: Extreme cleanliness must be exercised when handling these components.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustration showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the diesel exhaust fluid filler cap.
Remove the right rear wheel and tire assembly.
Refer to: WHEEL AND TIRE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

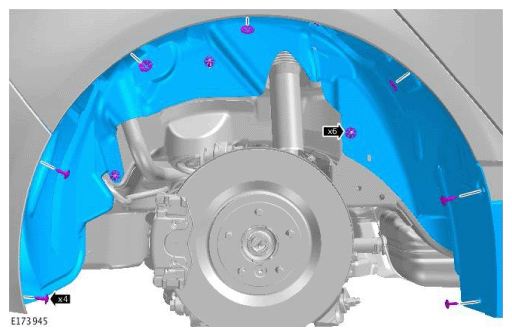

Remove the 4 bolts and 6 retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

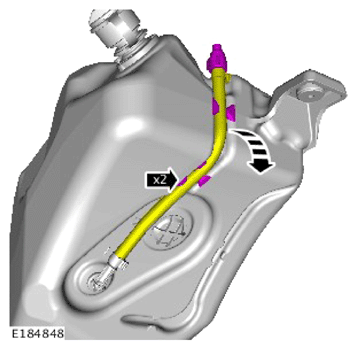

Remove the drain tube from the 2 clips.
WARNING: Be prepared to catch escaping fluid.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Allow the fluid to drain into a suitable container.
CAUTION: Make sure that the area around the component is clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the cap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the drain tube into the 2 retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the 4 bolts and 6 retaining clips.
Install the right rear wheel and tire assembly.
Refer to: WHEEL AND TIRE
