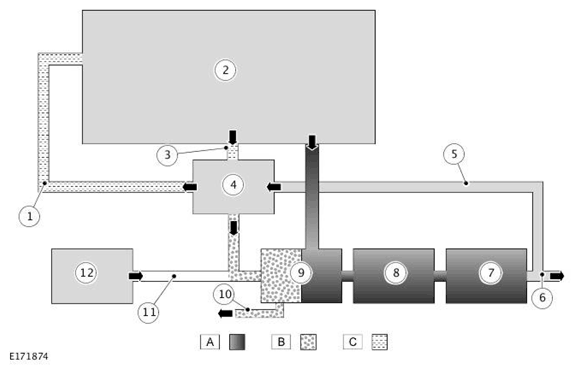

Low Pressure Exhaust Gas RECIRCULATION Schematic Diagram
WARNING: This page is about a different variant/trim than selected.
A = EXHAUST GAS: B = CHARGE AIR: C = CLEAN AIR.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Coolant outlet from Low Pressure Exhaust Gas Recirculation (EGR) system |
| 2 | Engine |
| 3 | Coolant inlet from engine |
| 4 | Low Pressure (LP) EGR system |
| 5 | LP EGR pipe |
| 6 | Post Diesel Particulate Filter (DPF) exhaust gases |
| 7 | DPF |
| 8 | Catalytic converter |
| 9 | Turbocharger |
| 10 | Charge air outlet |
| 11 | Clean air form Air intake system |
| 12 | Air intake system |
