Low Pressure Exhaust Gas RECIRCULATION System
WARNING: This page is about a different variant/trim than selected.

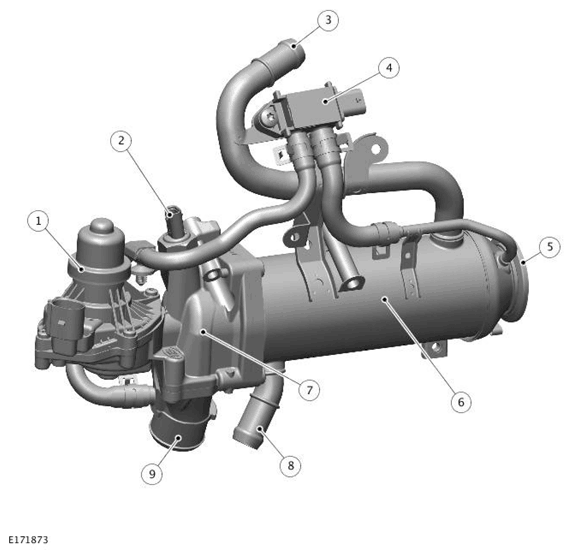

| ITEM | DESCRIPTION |
|---|---|
| 1 | Exhaust Gas Recirculation (EGR) valve motor |
| 2 | EGR outlet temperature sensor |
| 3 | Coolant inlet connection |
| 4 | Differential pressure sensor |
| 5 | Exhaust gas inlet from post Diesel Particulate Filter (DPF) |
| 6 | Cooler |
| 7 | EGR valve housing |
| 8 | Coolant outlet connection |
| 9 | Exhaust gas outlet to clean air duct |
The function of Low Pressure Exhaust Gas Recirculation (EGR) is to re-circulate the exhaust gases after Diesel Particulate Filter (DPF) to further improve ability to meet the emission level as well as reducing the CO2 thereby improving the fuel economy. It also improves engine transient performance due to more exhaust energy being diverted to the Turbocharger(s).
The function is electronically controlled and calibrated. It is governed and controlled by both hot end exhaust mounted throttle as well as unit mounted valve.
