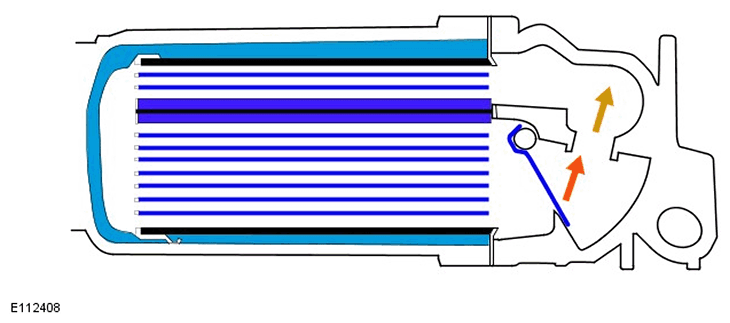

Exhaust Gas RECIRCULATION Cooler Bypass Valve Open

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

When the bypass valve is open, exhaust gasses are passed directly through the valve housing into the electric throttle with no cooling applied to the gasses.
