Exhaust Gas RECIRCULATION Cooler Bypass Valve Closed

WARNING: This page is about a different variant/trim than selected.

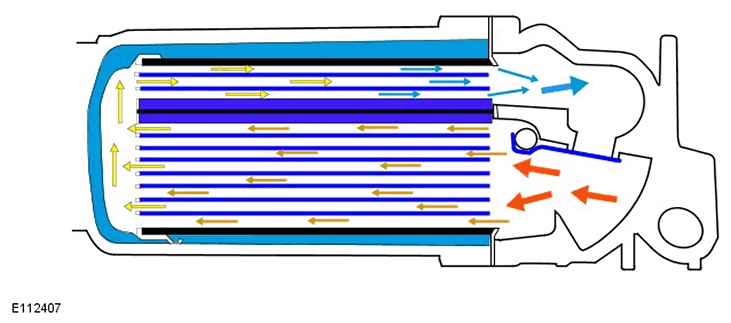

G11588534Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

When the bypass valve is closed, exhaust gasses are directed through the cooler before being passed to the electric throttle.
