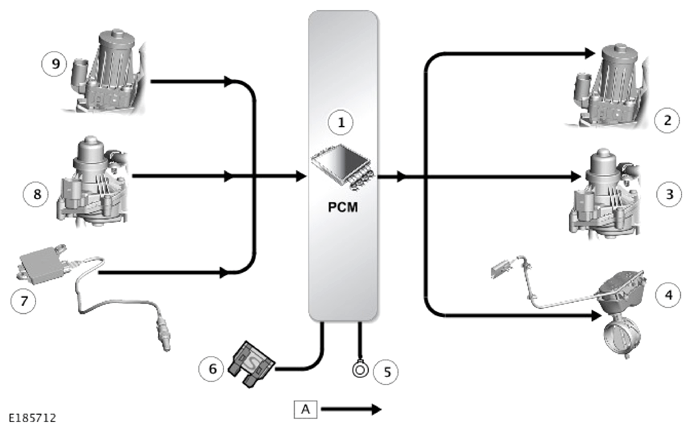

Control Diagram
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Right Exhaust Gas Recirculation (EGR) valve motor |
| 3 | Left EGR valve motor |
| 4 | Exhaust pressure control valve |
| 5 | Ground |
| 6 | Supply |
| 7 | Post Selective Catalyst Reduction (SCR) nitrogen oxide (NOx) sensor |
| 8 | Left EGR valve motor |
| 9 | Right EGR valve motor |
