Component Location - 3 Of 3 - Crankcase VENTILLATION

WARNING: This page is about a different variant/trim than selected.

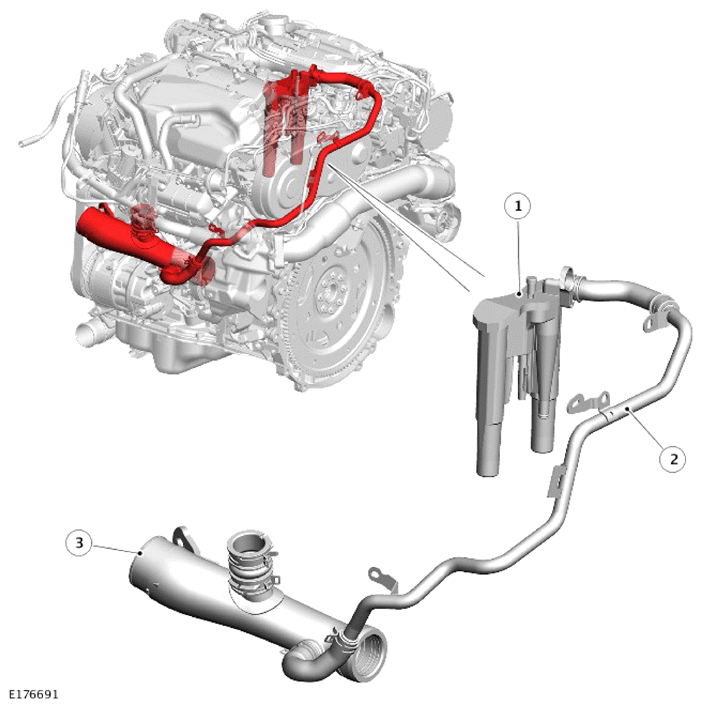

G14288724Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Engine vent oil separator
2 Crankcase ventilation hose
3 Clean air inlet from air intake system
