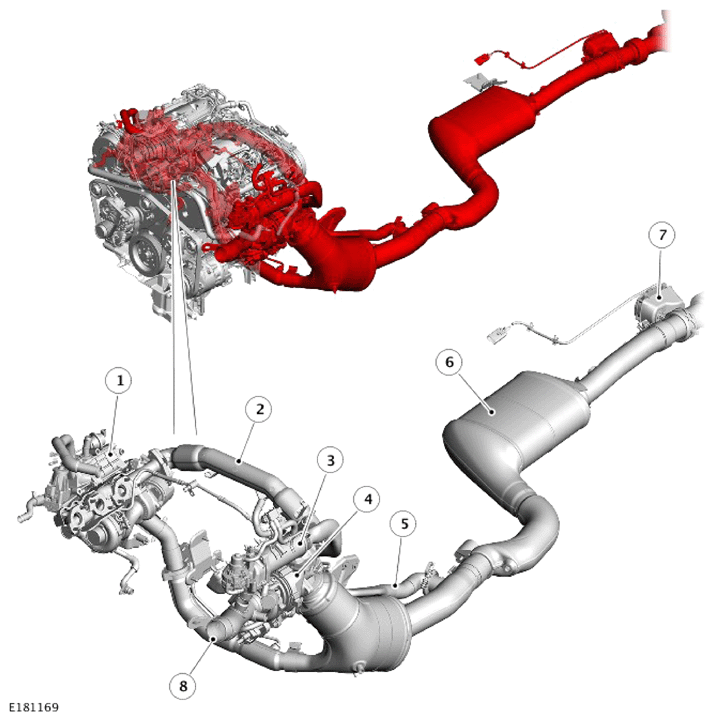

Component Location - 2 Of 3 - Low Pressure Exhaust Gas RECIRCULATION System
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Right Exhaust Gas Recirculation (EGR) cooler and housing |
| 2 | Exhaust manifold |
| 3 | Low Pressure (LP) EGR cooler and housing |
| 4 | Turbocharger |
| 5 | Exhaust gas inlet from post Diesel Particulate Filter (DPF) |
| 6 | Selective Catalyst Reduction (SCR) |
| 7 | Exhaust pressure control valve |
| 8 | Clean air inlet from air intake system |
