Component Location - 1 Of 2

WARNING: This page is about a different variant/trim than selected.

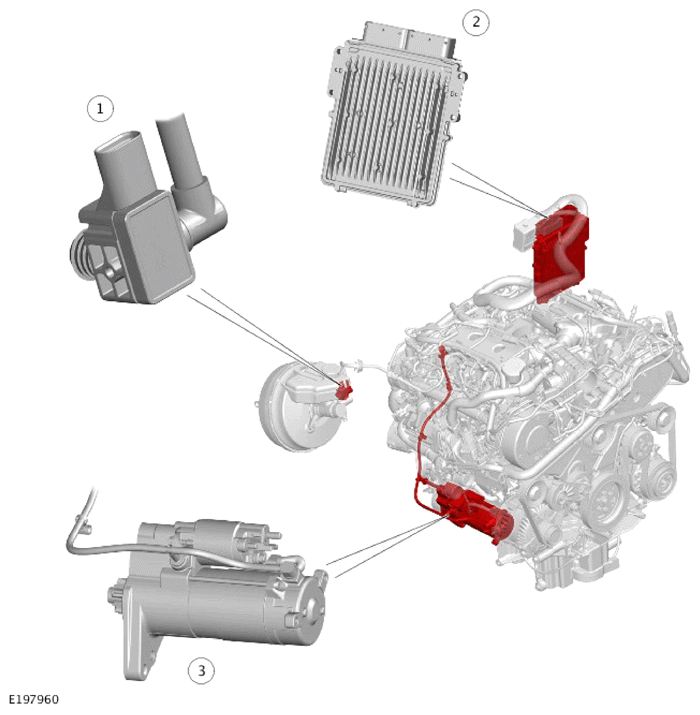

G14288401Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Brake vacuum sensor
2 Powertrain Control Module (PCM)
3 Starter motor
