Intake Air Shutoff Throttle (G1879758): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the engine cover.
Refer to: ENGINE COVER - TDV6 3.0L DIESEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

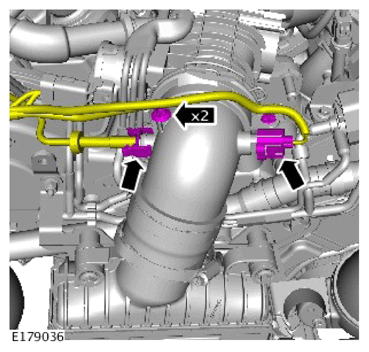

- Remove the two bolts from the air pipe.
- Disconnect the electrical connector and the breather from the air pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

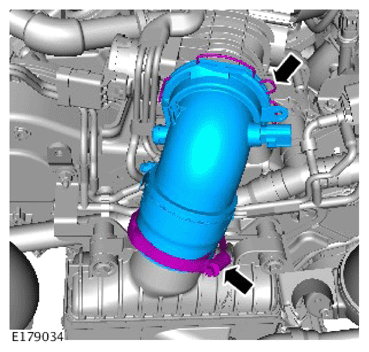

Release the pipe clamp and the locking clip and remove the air pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

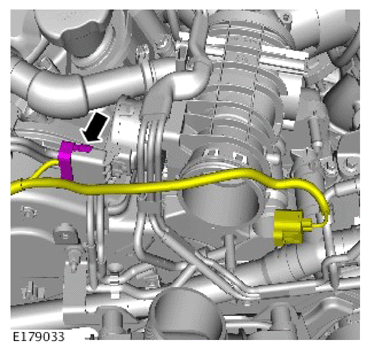

Disconnect the intake air shutoff throttle lower electrical connector and reposition the wiring harness away from the assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

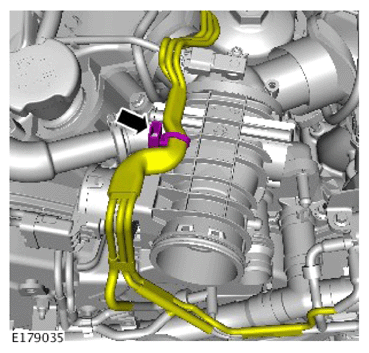

Release the 4 vacuum hoses from the retaining clip and reposition them away from the intake air shut-off throttle assembly.
Remove the Exhaust Gas Recirculation (EGR) valve outlet tube.
Refer to: EXHAUST GAS RECIRCULATION VALVE OUTLET TUBE
NOTE:
- If equipped.
- Remove and discard the retaining clamp.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

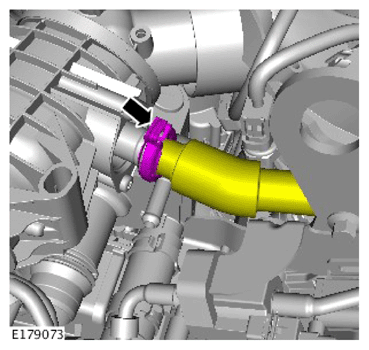

Remove the EGR inlet pipe clamp and reposition the EGR inlet pipe from the intake air shut-off throttle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

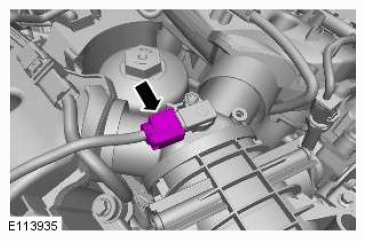

Disconnect the intake air shut-off throttle upper electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

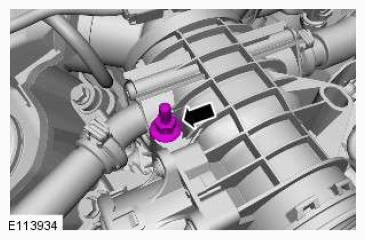

Remove the intake air shut-off throttle retaining nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

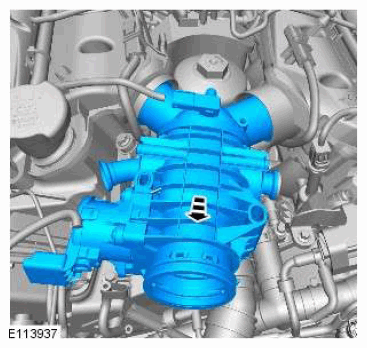

Remove the intake air shut-off throttle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

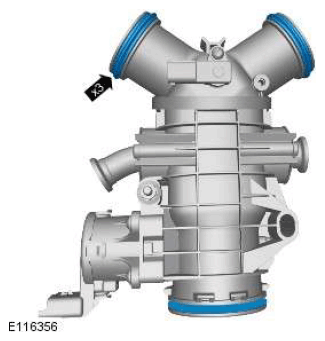

Remove and discard the 3 seals from the intake air shut-off throttle.
