High Pressure Fuel Pump Temperature Sensor (G2230901): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- Raise and support the vehicle on 2 post lift.
Refer to: LIFTING
- Remove the High Pressure (HP) fuel pump.
Refer to: FUEL INJECTION PUMP

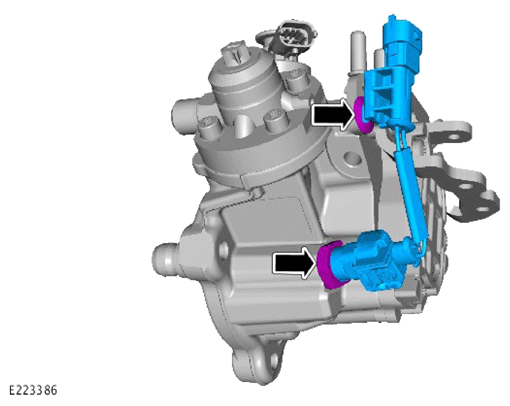

- Release the HP fuel pump temperature sensor retaining clip.
- Remove the HP fuel pump temperature sensor.
