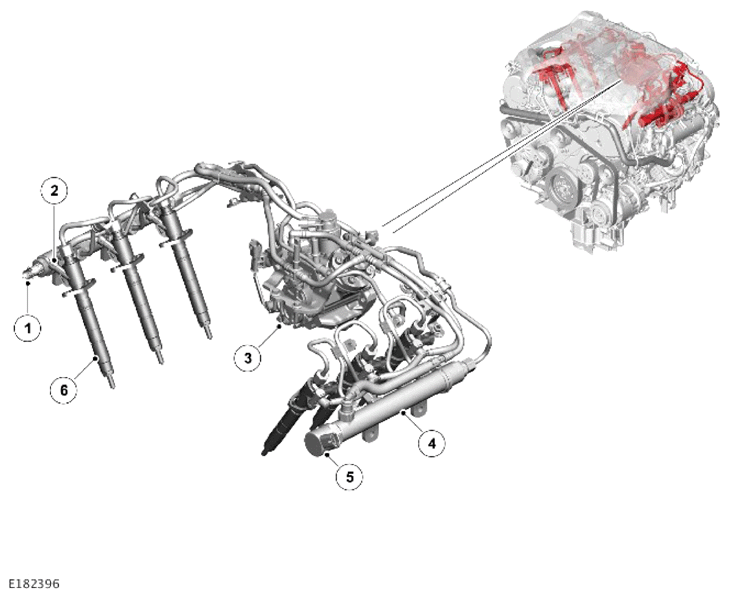

Component Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Fuel Rail Pressure (FRP) sensor |
| 2 |
Fuel rail - Bank 2 |
| 3 |
High Pressure (HP) fuel pump |
| 4 |
Fuel rail - Bank 1 |
| 5 |
Fuel rail Pressure Control Valve (PCV) |
| 6 |
Fuel injector (6 off) |
