Right Catalytic Converter (G2020246): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

EU6C variant shown. EU6D is similar.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the air deflector.
Refer to: ENGINE UNDERSHIELD
Remove the front silencer.
Refer to: FRONT SILENCER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

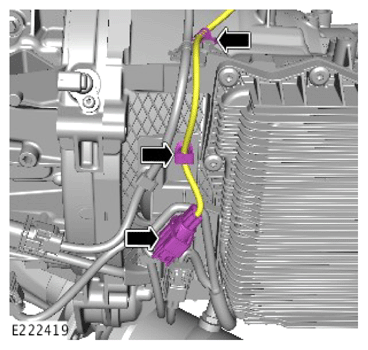

- Disconnect the Heated Oxygen Sensor (HO2S) electrical connector.
- Release the wiring harness from the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

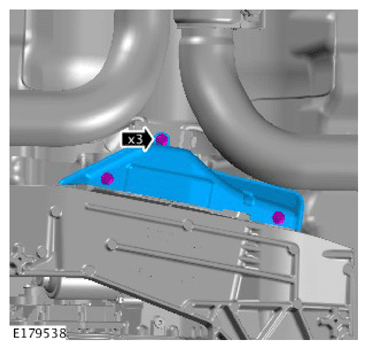

- Remove the 3 bolts.
- Remove the heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

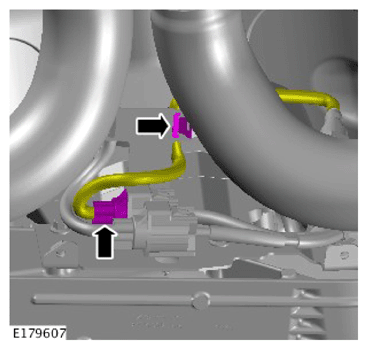

- Disconnect the HO2S electrical connector.
- Release the wiring from the clip.
WARNING: Observe due care when working near a hot exhaust system.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

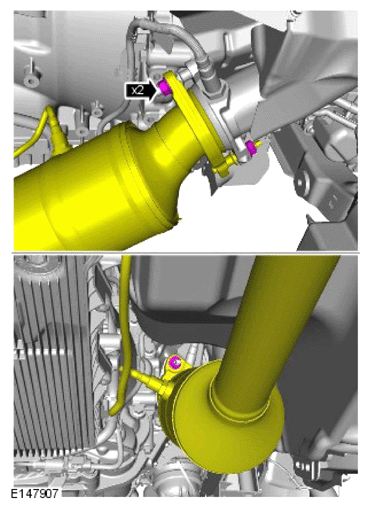

Remove and discard the 2 catalytic converter to exhaust manifold nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

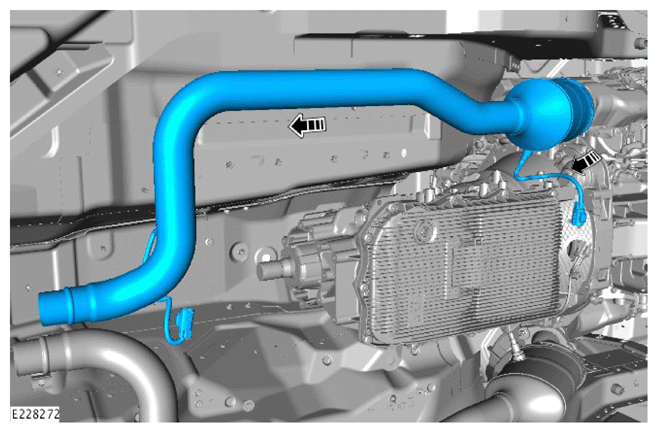

- Remove the right catalytic converter.
CAUTION:
- Make sure that the mating faces are clean and free of foreign material.
- If accidentally dropped or knocked install a new sensor.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

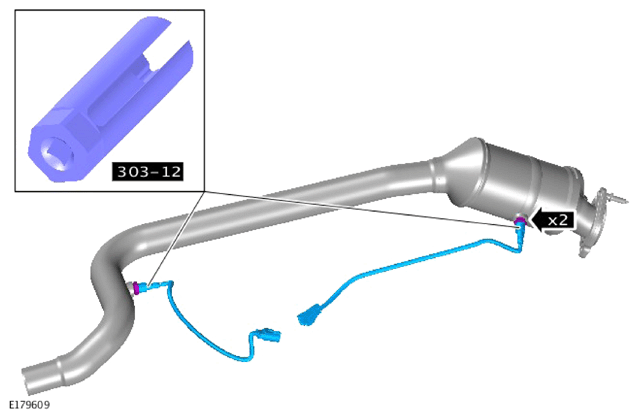

Using the special tool remove the H02S sensors.

Special Tool(s): 310-121
