Front Silencer (G2020248): Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
Observe due care when working near a hot exhaust system.
NOTE:
- Removal steps in this procedure may contain installation details.
- Some components shown removed for clarity.
- Some variation in the illustrations may occur, but the essential information is always correct.
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
-
NOTE: The procedure must be carried out on both sides.
Refer to: REAR SILENCER

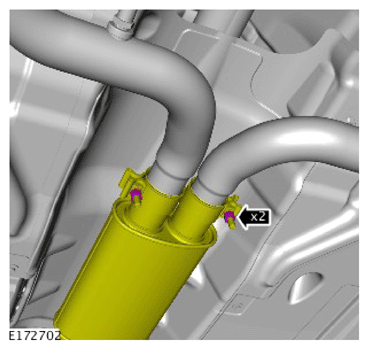

Torque : 30 Nm
-

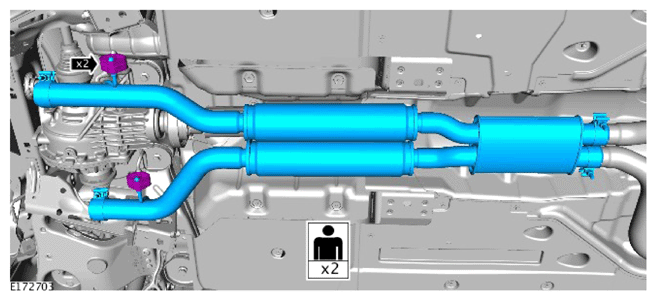

CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
Torque : 55 Nm
