Component Location
WARNING: This page is about a different variant/trim than selected.

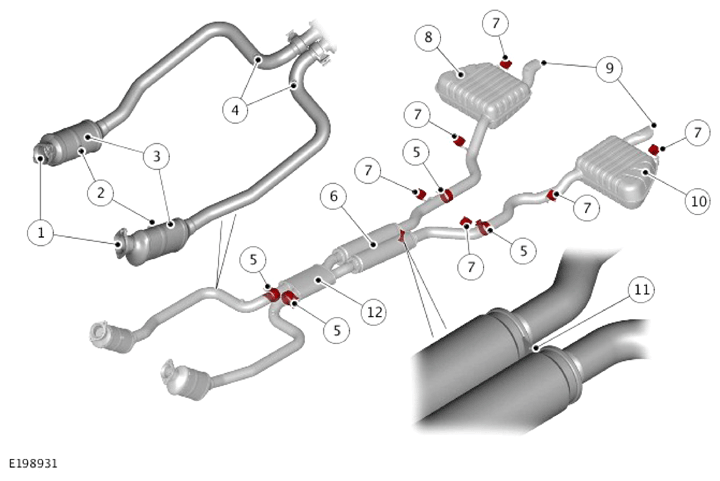

| ITEM | DESCRIPTION |
|---|---|
| 1 | Flange connection to exhaust manifold |
| 2 | Mid catalyst Heated Oxygen Sensor (HO2S) mounting boss |
| 3 | Catalytic converter |
| 4 | Post catalyst Heated Oxygen Sensor (HO2S) mounting boss |
| 5 | Clamp (4 off) |
| 6 | Center resonator |
| 7 | Mounting rubber (6 off) |
| 8 | Right rear silencer |
| 9 | Outlet pipe (2 off) |
| 10 | Left rear silencer |
| 11 | Exhaust brace |
| 12 | Center silencer |
