Radiator (G2135365): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the cooling fan motor and shroud.
Refer to: ELECTRIC COOLING FAN AND SHROUD

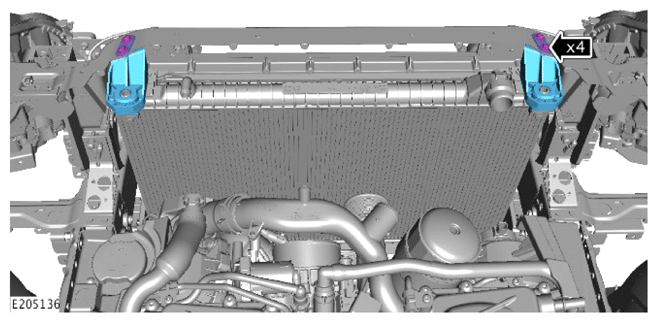

Remove the radiator upper mounting brackets.

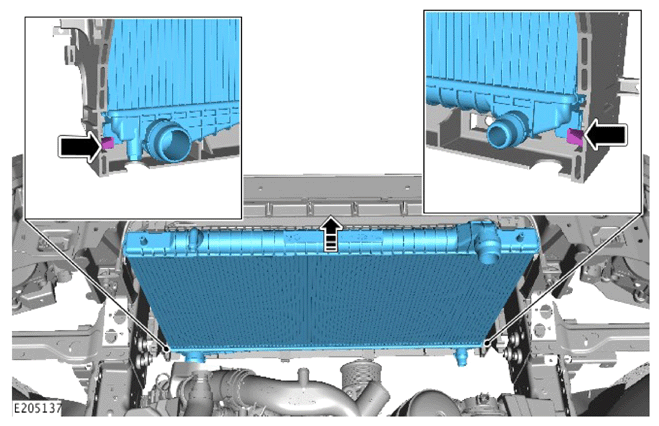

Remove the radiator.
