Electric Thermostat (G1824678): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Drain the cooling system.
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING
Remove the air cleaner pipe connector.
Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR
Remove the air cleaner outlet pipe.
Refer to: LEFT AIR CLEANER OUTLET PIPE
Remove the air cleaner.
Refer to: LEFT AIR CLEANER
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

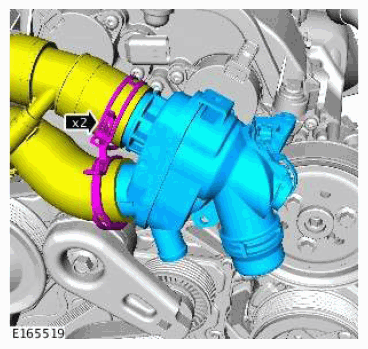

Disconnect the 2 coolant pipes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

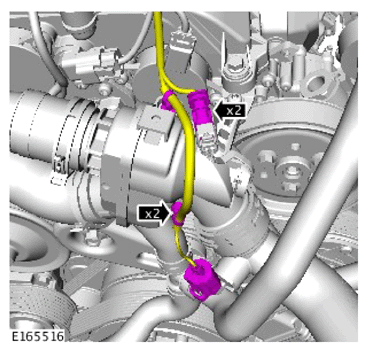

Disconnect the electrical connectors.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

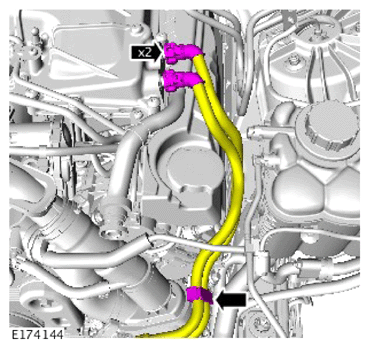

Disconnect the 2 coolant pipes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

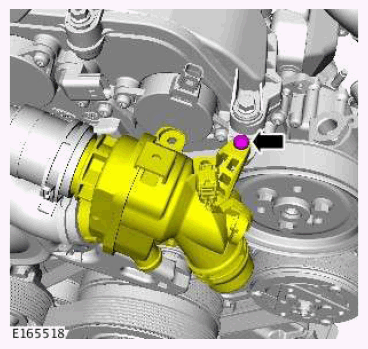

Remove the bolt.
CAUTION: Be prepared to collect escaping coolant.

NOTE: The retaining clips cannot be removed from the pipe.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

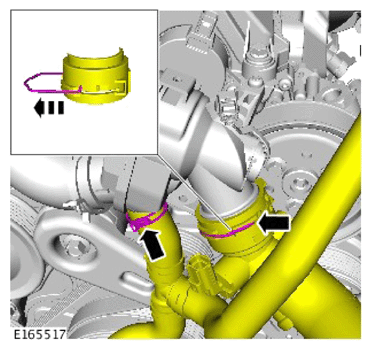

Release the clips and remove the electric thermostat.
