Electric Cooling Fan And Shroud (G2058541): Removal

WARNING: This page is about a different variant/trim than selected.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Drain the coolant system.
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the coolant pump electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

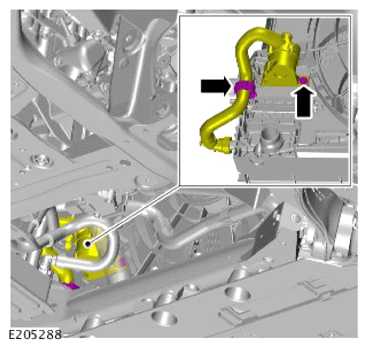

Release the auxiliary coolant pump.
Lower the vehicle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

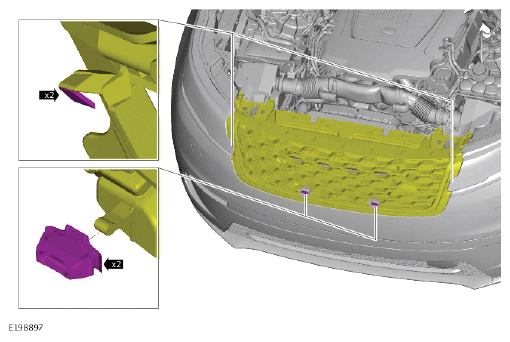

Remove the 8 push pins.
CAUTION: Take extra care not to damage the surrounding components.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

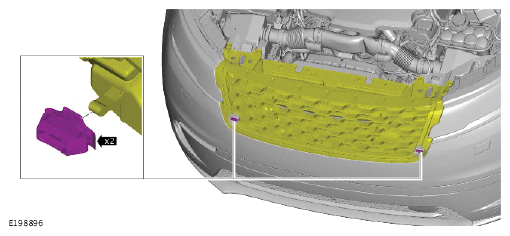

Remove the radiator grille.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the air intake duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the air deflector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

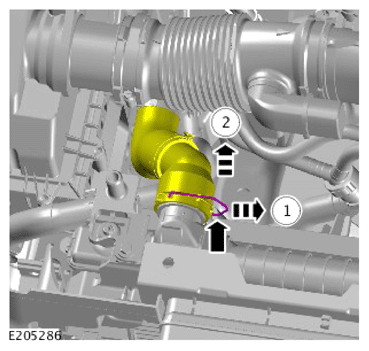

Disconnect the radiator upper hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the radiator bleed hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

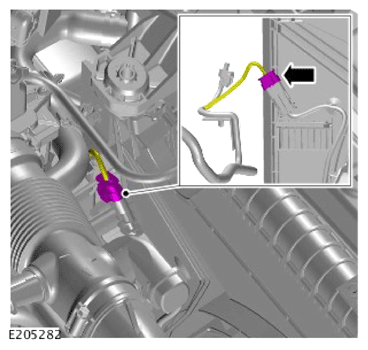

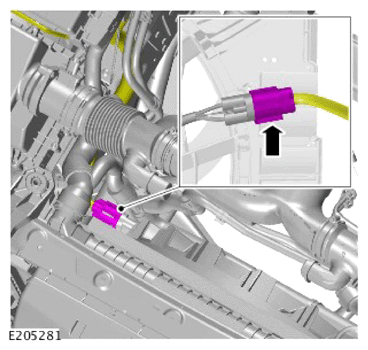

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

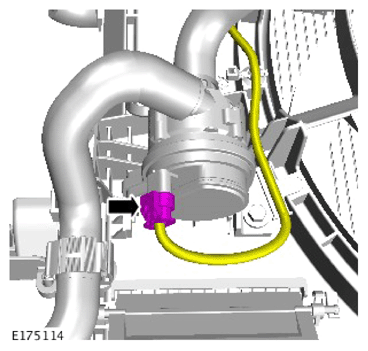

Disconnect the cooling fan electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

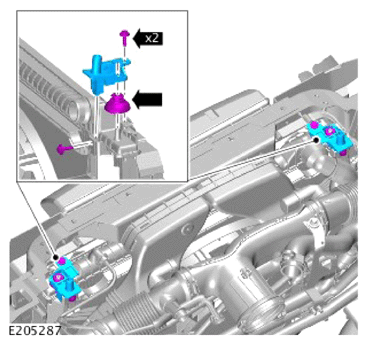

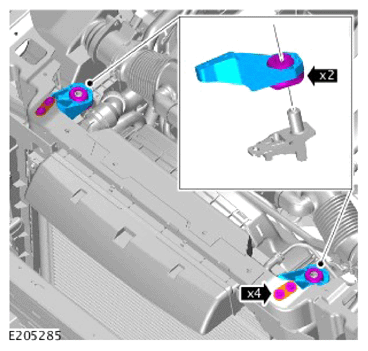

Remove the radiator brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the cooling fan motor and shroud securing brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

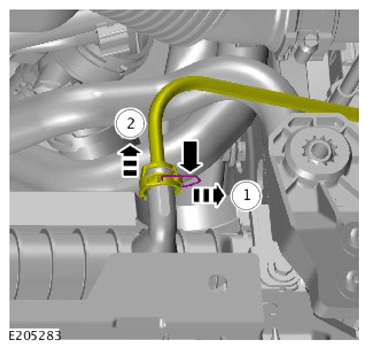

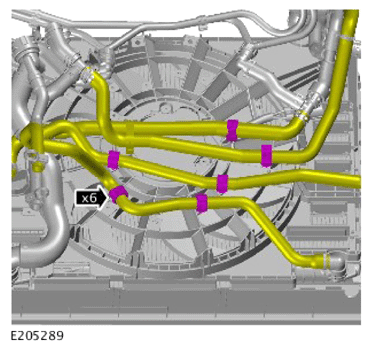

Release the coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

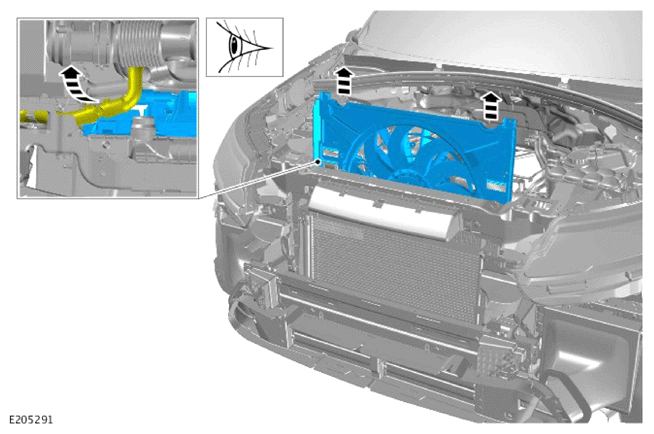

Remove the cooling fan assembly.
NOTE: Only carry out the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

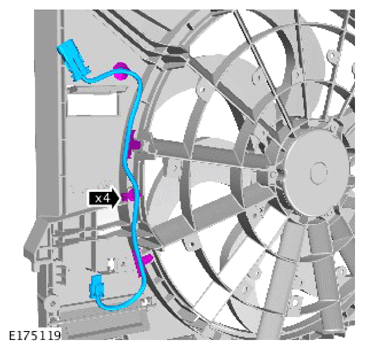

Remove wiring harness.
