Cylinder Head Coolant Outlet Pipe (G2732374): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Be prepared to collect escaping coolant.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the supercharger.
Refer to: SUPERCHARGER (V6 S/C 3.0L Petrol, Removal and Installation).
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

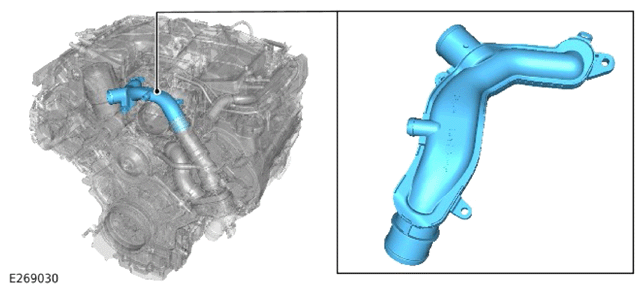

Discard the upper pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

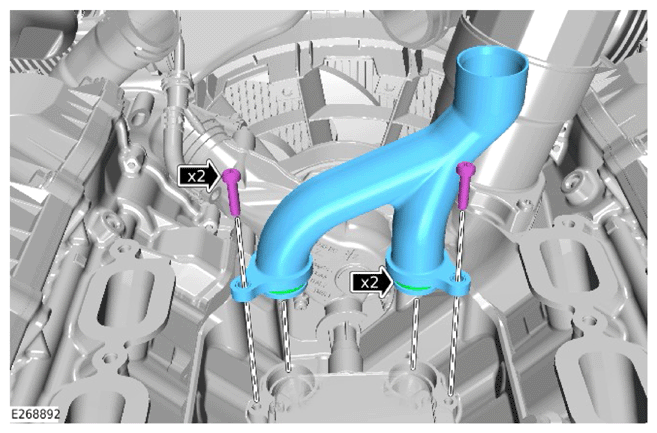

- Remove the 2 bolts.
- Remove and discard the lower pipe.
