Coolant Pump (G1824662): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
-
- If the replacement of the coolant pump is because of a coolant leak proceed to step 2.
- If the replacement of the coolant pump is not because of a coolant leak proceed to step 3.

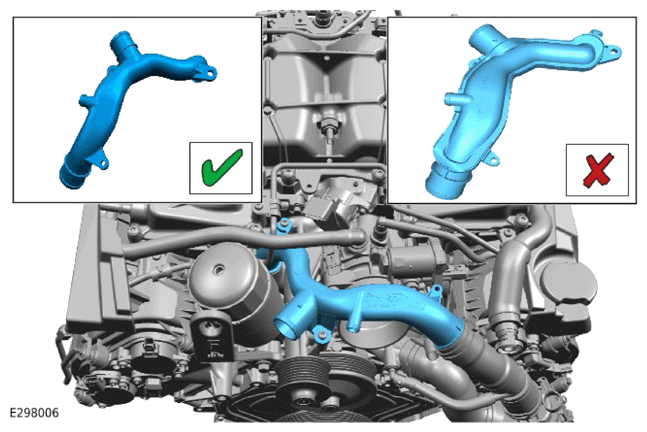

- Inspect the cylinder head coolant outlet pipe shown in illustration E298006.
- If the cylinder head coolant outlet pipe is to the latest level, continue to step 3.
- If the cylinder head coolant outlet pipe is not to the latest level, replace the cylinder head coolant outlet pipe and continue to sub step 4.
Refer to: CYLINDER HEAD COOLANT OUTLET PIPE
- Complete a coolant system pressure test to confirm the coolant leak has been rectified.
Refer to: COOLING SYSTEM PRESSURE TEST
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Drain the coolant system.
- Remove the accessory drive belt.
Refer to: ACCESSORY DRIVE BELT

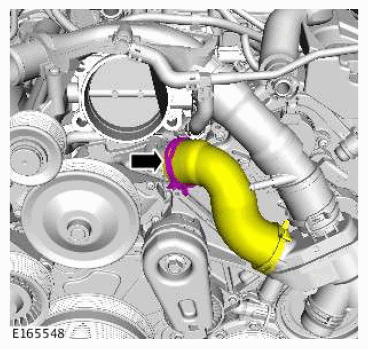

Using a suitable tool remove the coolant hose.

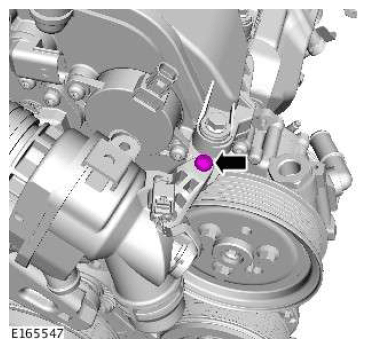

Remove the thermostat bolt.
-
CAUTION: Be prepared to collect escaping coolant.

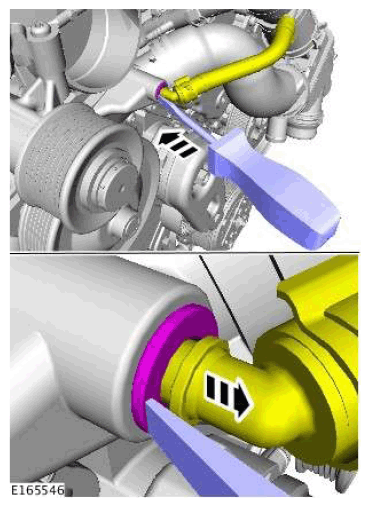

Release the clip and the coolant hose from the coolant pump.

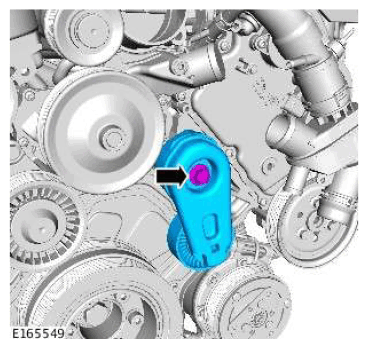

Remove the accessory drive belt tensioner.
-
WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.CAUTION: Engine coolant will damage the paint finished surfaces. If spilt, immediately remove the coolant and clean the area with water.

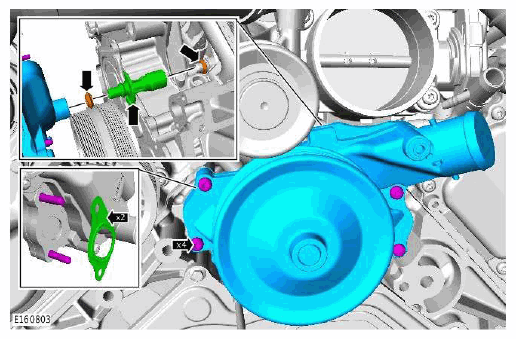

Remove the coolant pump and discard the seals.
Torque : 12 Nm
