5-Way Manifold (G2271344): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Be prepared to collect escaping coolant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Remove the Air Cleaner Outlet Pipe T-Connector.
Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

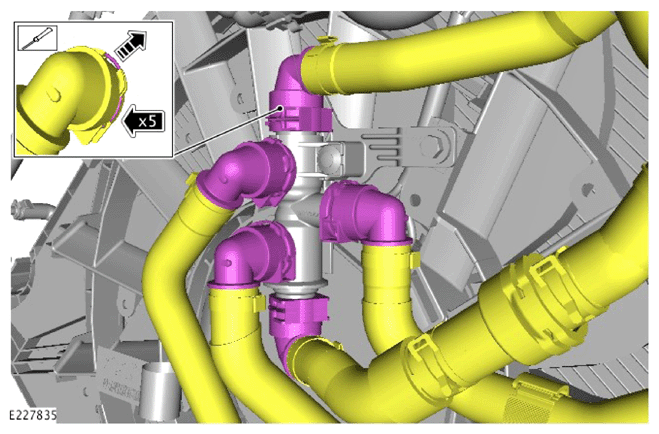

Disconnect the 5 pipes from the 5-way manifold.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

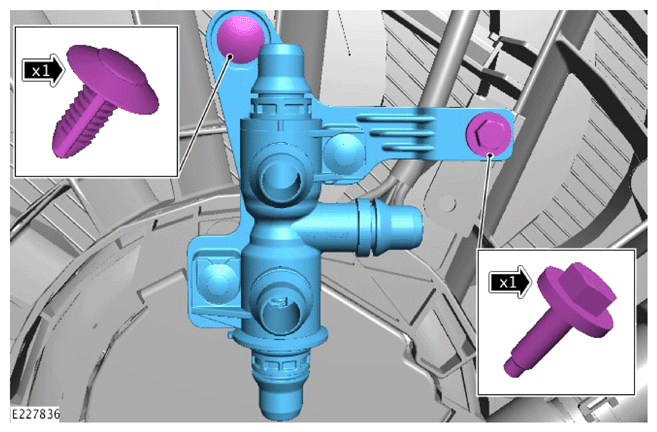

- Remove the bolt.
- Remove the fastener.
- Remove the 5-way manifold bracket assembly.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

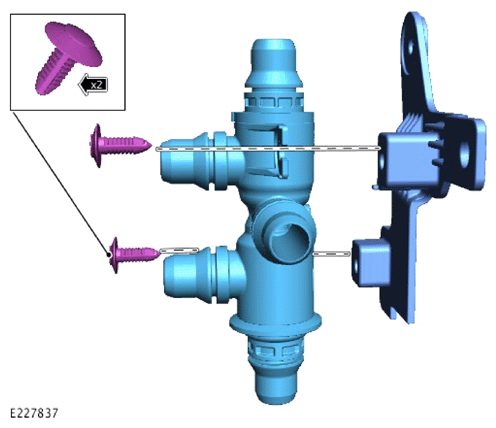

- Remove the 2 fasteners.
- Remove the 5-way manifold from the bracket.
