Engine Coolant Outlet Tube
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

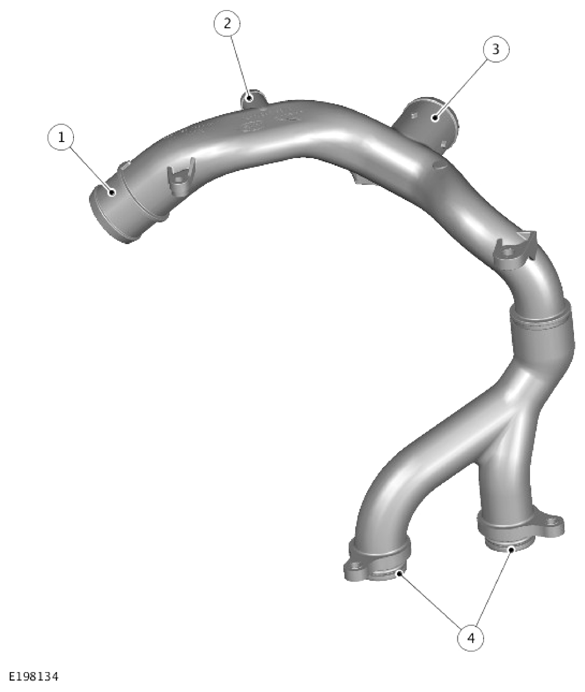

| ITEM |
DESCRIPTION |
| 1 |
Hose connection - Electric thermostat |
| 2 |
Blanking plug |
| 3 |
Hose connection - Radiator upper hose |
| 4 |
Flange connections - Cylinder block |
The engine coolant outlet tube routes hot engine coolant from the engine to the radiator upper hose when the electric thermostat is open.
