Block Heater

WARNING: This page is about a different variant/trim than selected.

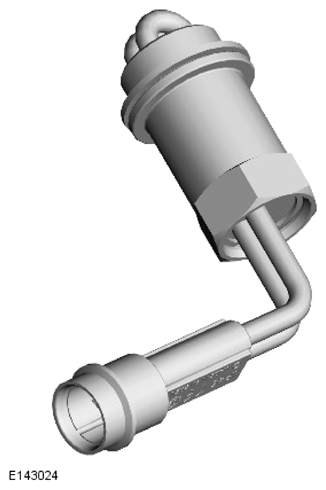

G14286329Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

For vehicle markets subject to very cold climatic conditions, a cylinder block heater is installed in place of the cylinder block drain plug. The cylinder block heater is either a 110V Alternating Current (AC) or 240V AC electric heater element, depending on the market. The block heater can be connected to a domestic power supply through a connector in the left side grill of the front bumper.
