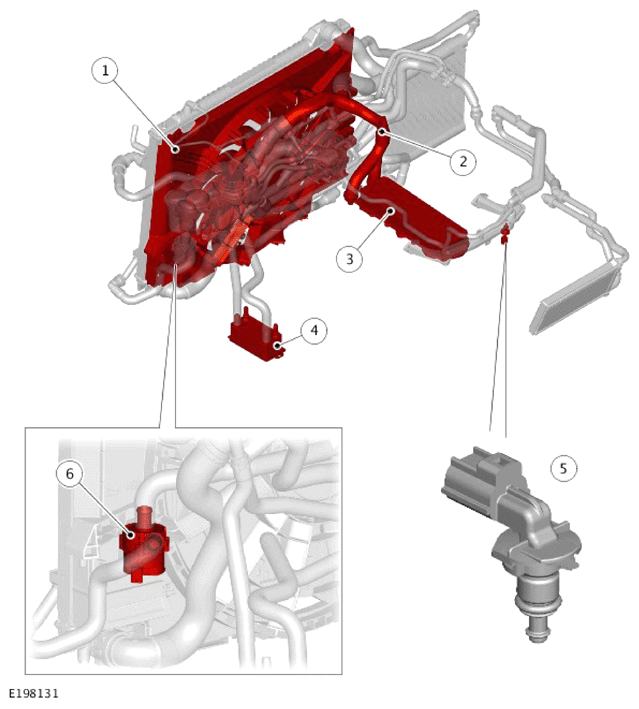

Component Location - 2 Of 3 - Rear View
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Electric cooling fan |
| 2 |
Engine coolant outlet tube |
| 3 |
Oil cooler |
| 4 |
Automatic Transmission Fluid (ATF) cooler |
| 5 |
Engine coolant temperature sensor |
| 6 |
Charge air coolant pump |
