Right Variable Valve Timing Oil Control Solenoid (G1818510): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Remove the Air Cleaner Outlet Pipe T-Connector.

    Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR

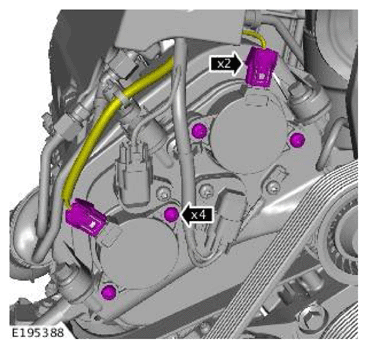

  2. G12000840Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the 2 electrical connectors and remove the 4 retaining bolts.

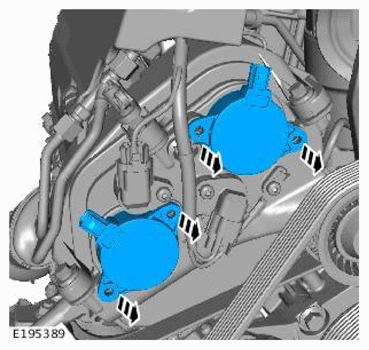

  3. G12000841Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Evenly and progressively, remove the variable valve timing oil control solenoids.
