Right Variable Valve Timing Oil Control Solenoid (G1818510): Installation

WARNING: This page is about a different variant/trim than selected.
  1. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    NOTE: Lubricate the O-ring seals with clean engine oil.

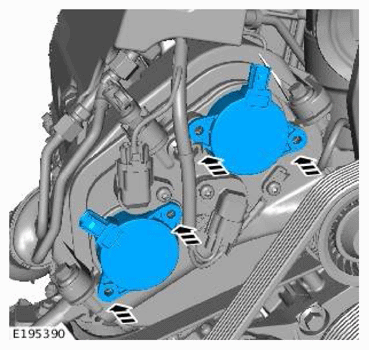

    G12000842Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the variable valve timing oil control solenoids.

  2. G12000840Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 4 retaining bolts and connect the 2 electrical connectors.

    Torque  : 10 Nm

  3. Install the Air Cleaner Outlet Pipe T-Connector.

    Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR
