Right Mid Catalyst Heated Oxygen Sensor (G2149120): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustration showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. G12563096Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the engine undershield.

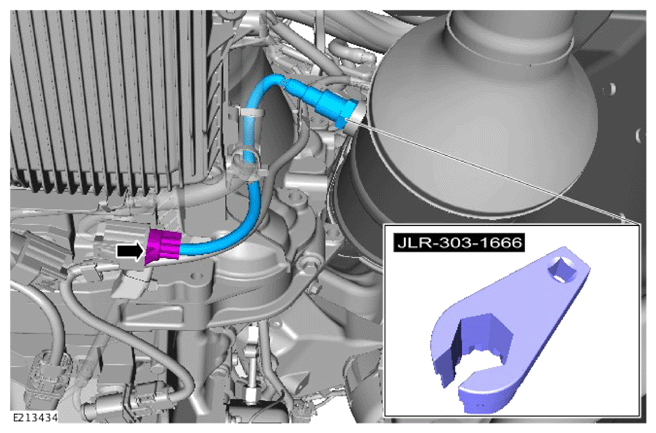

  3. G14290084Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector and release the clips.
    • Using the special tool, remove the Heated Oxygen Sensor (HO2S).

      Special Tool(s): JLR-303-1666
