Right Knock Sensor (G1818448): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. Disconnect the startup battery ground cable.

    Refer to: SPECIFICATIONS

  3. Remove the supercharger.

    Refer to: SUPERCHARGER

  4. NOTE: Note the orientation of the component prior to removal.

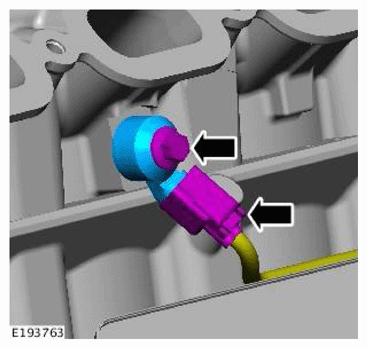

    G12000789Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the knock sensor.
