Right Exhaust Back Pressure Sensor (G2401312): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the engine cover.
Refer to: ENGINE COVER - V6 S/C 3.0L PETROL
Remove the right air cleaner.
Refer to: RIGHT AIR CLEANER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

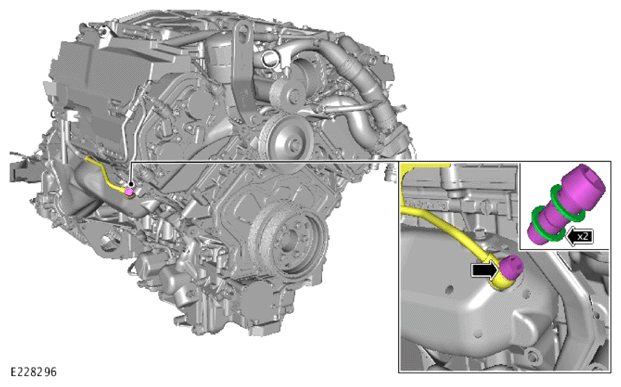

- Remove the banjo bolt.
- Remove and discard the 2 sealing washers.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

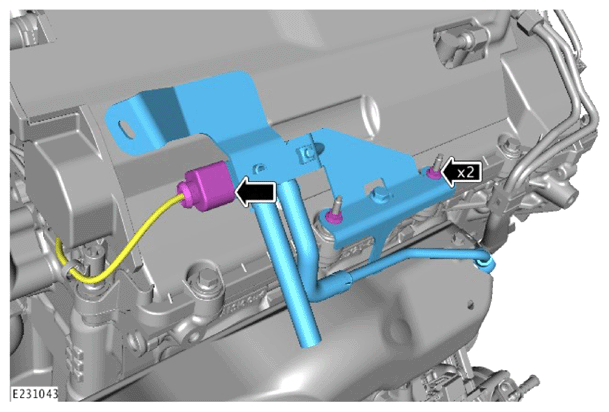

- Disconnect the electrical connector.
- Remove the 2 nuts.
- Remove the differential pressure sensor assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

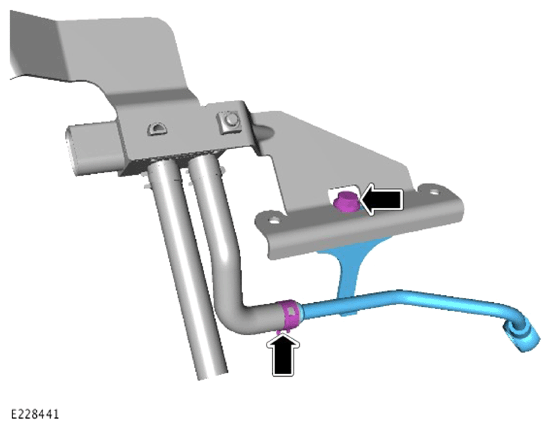

- Release the clip.
- Remove the bolt.
- Remove and discard the pipe assembly from the differential pressure sensor assembly.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

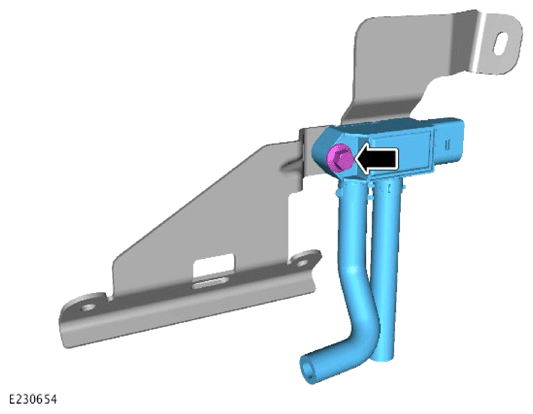

- Remove the bolt.
- Remove the bracket from the differential pressure sensor.
