Post Catalyst Heated Oxygen Sensor (G1818208): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING

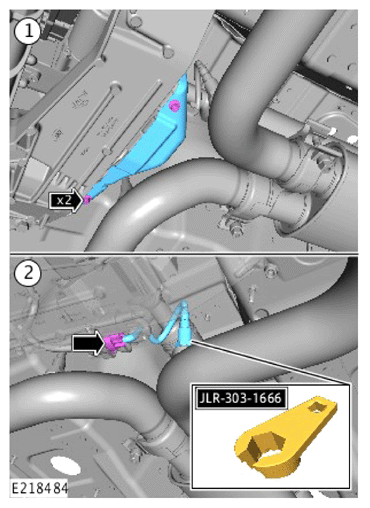

- Remove the bracket.
- Disconnect the electrical connector and release the clips.
- Using the special tool remove the Heated Oxygen Sensor (HO2S).
Special Tool(s): JLR-303-1666
