Mass Air Flow Sensor (G1818356): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for the left side components, right side components are similar.

Remove the engine cover.
Refer to: ENGINE COVER - V6 S/C 3.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

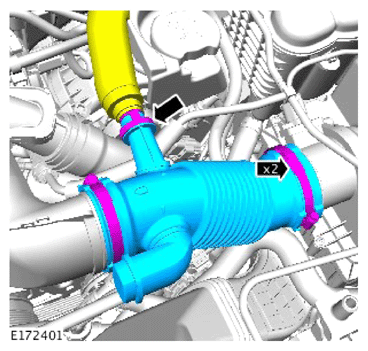

Remove the left air intake pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

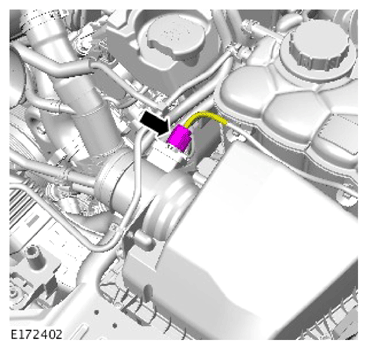

Disconnect the Mass Air Flow (MAF) electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

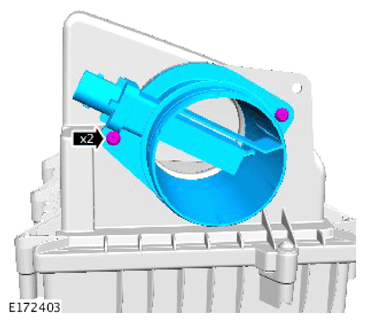

Remove the MAF sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

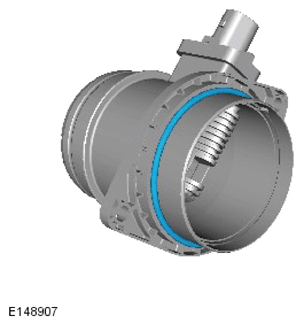

Remove and discard the O-ring seal.
