Manifold Absolute Pressure Sensor (G2020180): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the engine cover.
Refer to: ENGINE COVER - V6 S/C 3.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

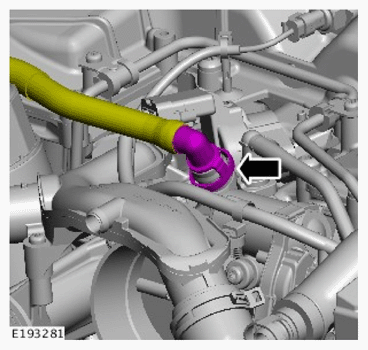

Release the air pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

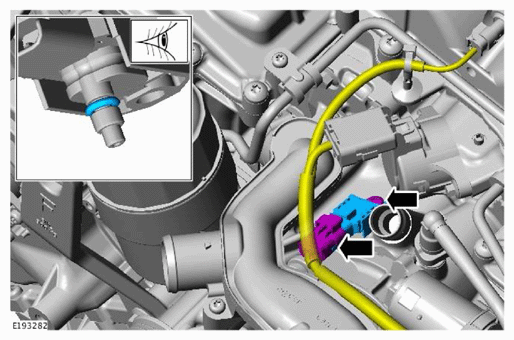

- Disconnect the Manifold Absolute Pressure (MAP) sensor electrical connector.
- Remove the MAP sensor retaining bolt.
- NOTE: Inspect the O-ring seal, replace if damaged or worn.

  Remove the MAP sensor.
