Manifold Absolute Pressure And Temperature Sensor (G2020181): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the secondary bulkhead lower panel.
Refer to: SECONDARY BULKHEAD LOWER PANEL - V6 S/C 3.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the engine cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the engine cover bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

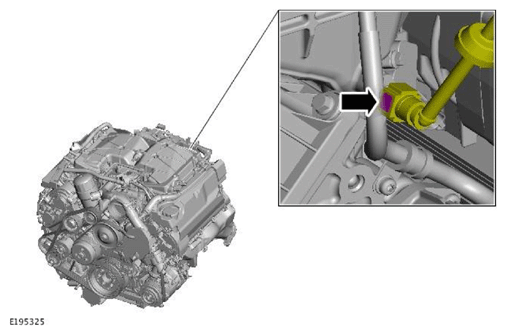

Release the vacuum pipe connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

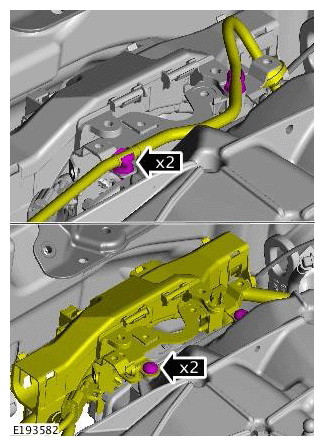

- Release the vacuum pipe from the 2 retaining clips.
- Remove the 2 bolts and reposition the wiring harness and vacuum pipe away from the manifold absolute pressure and temperature sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector and remove the manifold absolute pressure and temperature sensor.
