Manifold Absolute Pressure And Temperature Sensor (G2020181): Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

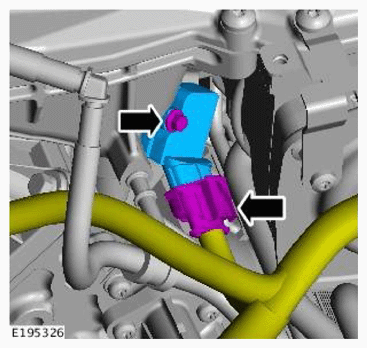

Install the manifold absolute pressure and temperature sensor and connect the electrical connector.

Torque : 5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

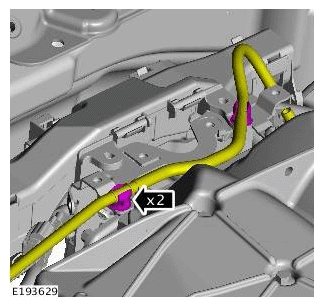

Install the wiring harness and vacuum pipe in the correct postion and tighten the 2 bolts to the correct torque.

Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

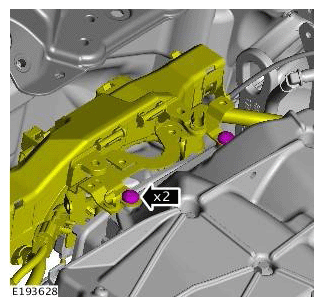

Secure the vacuum pipe into the retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

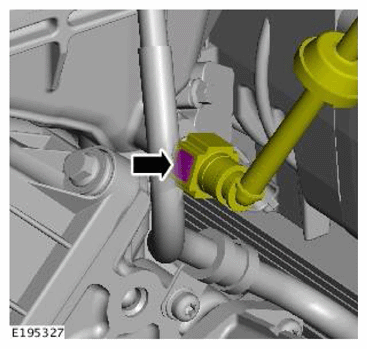

Connect the vacuum pipe connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

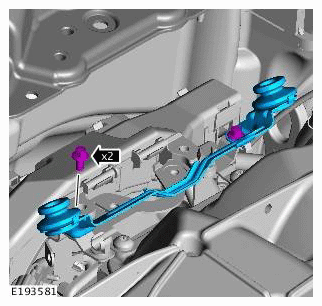

Install the engine cover bracket and tighten the 2 bolts to the correct torque.

Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

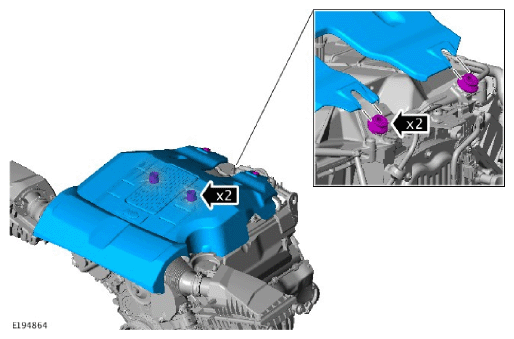

Install the engine cover.
Install the secondary bulkhead lower panel.
Refer to: SECONDARY BULKHEAD LOWER PANEL - V6 S/C 3.0L PETROL
