Left Variable Valve Timing Oil Control Solenoid (G1818509): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the electric thermostat.
Refer to: ELECTRIC THERMOSTAT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

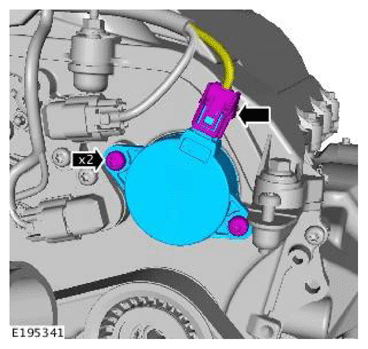

Disconnect the electrical connector and remove the 2 retaining bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

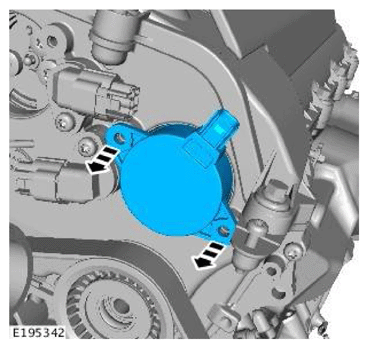

Evenly and progressively, remove the variable valve timing oil control solenoid.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

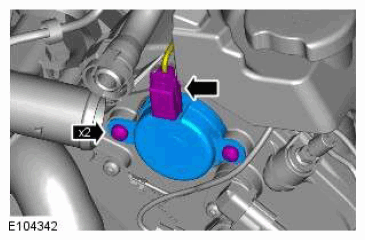

Disconnect the electrical connector and remove the 2 retaining bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

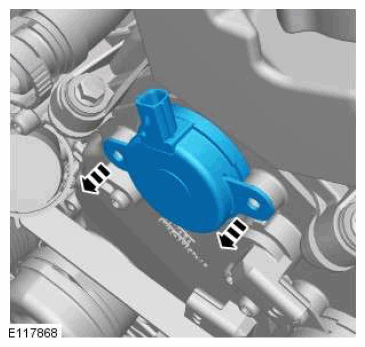

Evenly and progressively, remove the variable valve timing oil control solenoid.
