Left Variable Valve Timing Oil Control Solenoid (G1818509): Installation

WARNING: This page is about a different variant/trim than selected.
  1. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    NOTE: Lubricate the O-ring seals with clean engine oil.

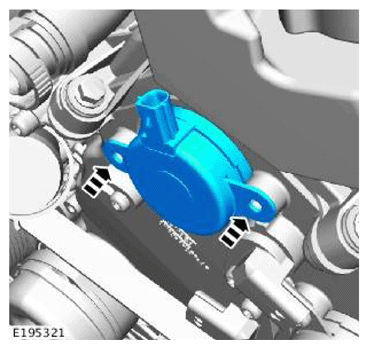

    G12000835Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the variable valve timing oil control solenoid.

  2. G11608607Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 2 retaining bolts and connect the electrical connector.

    Torque  : 10 Nm

  3. CAUTION:
    • Make sure that the mating faces are clean and free of foreign material.
    • Lubricate the O-ring seals with clean engine oil.

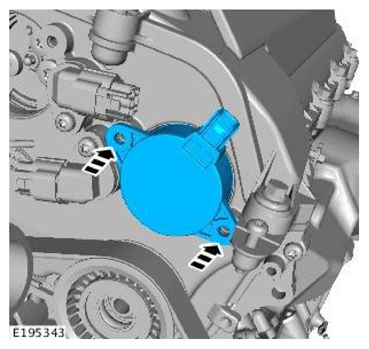

    G12000837Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the variable valve timing oil control solenoid.

  4. G12000833Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 2 retaining bolts and connect the electrical connector.

    Torque  : 10 Nm

  5. Install the electric thermostat.

    Refer to: ELECTRIC THERMOSTAT
