Left Knock Sensor (G1818447): Installation

WARNING: This page is about a different variant/trim than selected.
  1. NOTE: Make sure that this component is installed to the noted removal position.

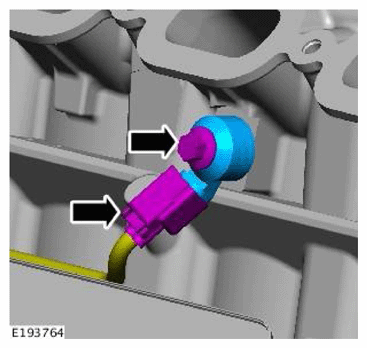

    G12000783Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the Knock Sensor (KS).

      Torque  : 20 Nm

  2. Install the supercharger.

    Refer to: SUPERCHARGER

  3. Connect the startup battery ground cable.

    Refer to: SPECIFICATIONS
