Left Exhaust Back Pressure Sensor (G2401311): Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: This step is only required if previously removed.
- Install the bracket to the differential pressure sensor.
- Install and tighten the bolt.
  Torque : 9 Nm
- Install the pipe to the differential pressure sensor hose.
- Secure the clip.
- Install the bolt finger tight at this stage.
- Install the differential pressure sensor assembly.
- Install and tighten the 2 nuts.
  Torque : 9 Nm
- Connect the electrical connector.
- Install the wiring harness clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

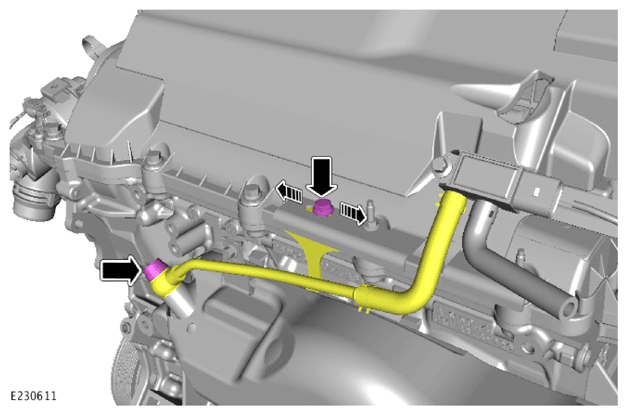

- Install and tighten the banjo bolt.
  Torque : 50 Nm
- Fully tighten the bracket bolt.
  Torque : 9 Nm
Install the left air cleaner.
Refer to: LEFT AIR CLEANER
Install the engine cover.
Refer to: ENGINE COVER - V6 S/C 3.0L PETROL
