Left Camshaft Position Sensor (G1550187): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the electric thermostat.
Refer to: ELECTRIC THERMOSTAT

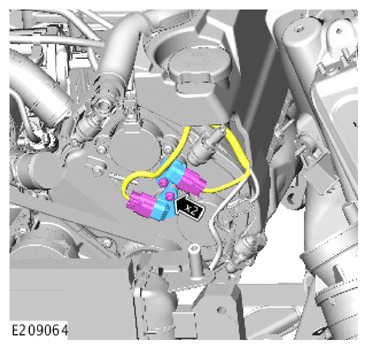

- Disconnect the 2 electrical connectors.
- Remove the 2 retaining bolts.
Torque : 10 Nm
