Engine Oil Level Sensor (G2130673): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. Drain the engine oil.

    Refer to: ENGINE OIL VACUUM DRAINING AND FILLING

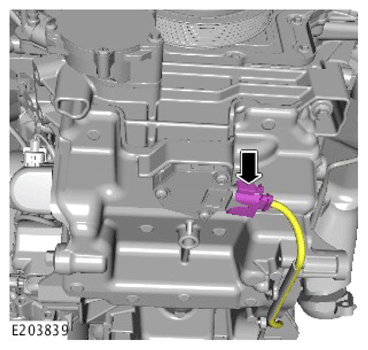

  3. G14290061Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the electrical connector.

  4. CAUTION: Be prepared to collect escaping oil.
    G14290062Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the sensor and discard the seal.
